REP-TAT-P-1151-01 Removing coolant pump with support
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

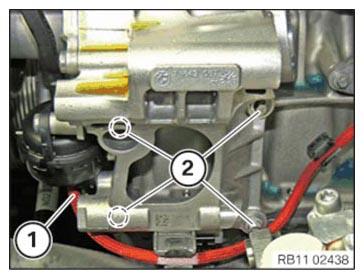

- Detach the vacuum hose (1) and release from the clamp.
- Loosen screws (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

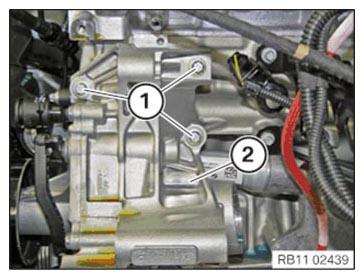

- Loosen screws (1).
- Undo and remove coolant pump with support (2) of the guide bushings.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
