REP-TAT-P-1141-02 Installing the hydraulic valve for the oil pressure control
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.
- Check the O-ring (1) for damage.
- If necessary, replace the hydraulic valve.

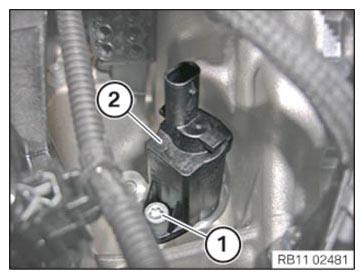

- Install the hydraulic valve (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Hydraulic valve to crankcase | ||
|---|---|---|
| M6 x 18 | tightening torque | 8 Nm |

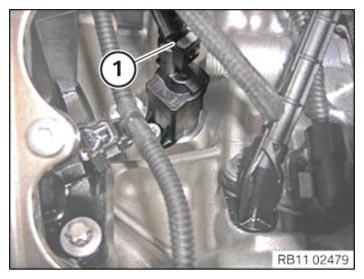

- Connect connector (1).

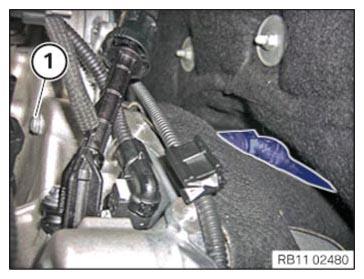

- Tighten the transmission bolt (1).
TIGHTENING TORQUES SPECIFICATION
| Transmission to engine | ||
|---|---|---|
| M12 x 100 | tightening torque | 66 Nm |
