REP-TAT-P-1140-05 Checking the oil pressure
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

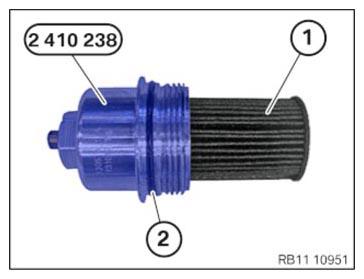

- Remount the oil filter element (1) in the special tool 2 410 238.
- If necessary, remount the gasket (2).
- Install and tighten the special tool 2 410 238 .
TIGHTENING TORQUES SPECIFICATION
| Special tool to measure the pressure on the oil filter module | ||
|---|---|---|
| O-ring lightly oiled. | tightening torque | 25 Nm |

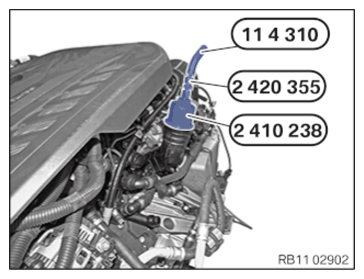

- Connect the special tool 0 496 623 (11 4 310) with special tool 2 420 355 and special tool 2 410 238 .
- Gasket on the pressure sensor (part number: 81 31 2 357 801 and 81 38 0 431 592).
- Pressure sensor (part number: 81 31 2 357 801 and 81 38 0 431 592) in the special tool 0 496 623 (11 4 310).
- Use the connecting cable to connect the pressure sensor (part number: 81 31 2 357 801 or 81 38 0 431 592) with the Integrated Measurement Interface Box (IMIB) (81 38 2 295 937).
- Check oil pressure.
- Observe diagnosis instructions.
- Remove special tools 0 496 623 (11 4 310), 2 420 355 and 2 410 238.
- Loosen the oil filter element (1) from the special tool 2 410 238.
- If necessary, remount the gasket (2).
