Section 359 (Engine Repair (F30, 6-CYL RWD) (2 Of 4))
>>
11 28 V Belt With Belt TENSIONER And Idler Pulley
>>
11 28 020 Replacing tensioning device for drive belt of the alternator
>>
REP-TAT-P-1128-01 Removing the belt tensioner
REP-TAT-P-1128-01 Removing the belt tensioner
WARNING:
This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

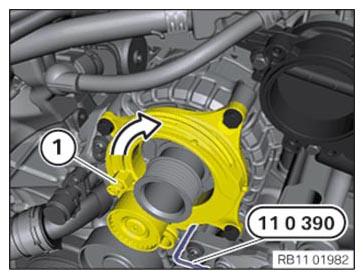

Tension belt tensioner at hexagon head (1) up to stop.
Remove special tool
0 496 268 (11 0 390)
.
Courtesy of BMW OF NORTH AMERICA, INC.

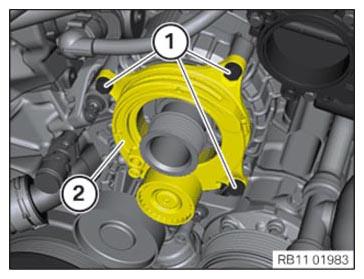

Loosen screws (1).
Remove belt tensioner (2).
Courtesy of BMW OF NORTH AMERICA, INC.
