REP-TAT-P-1125-25 Replacing: Remounting all pistons

WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The description is for one component only. The procedure is identical for all further components.

Removing piston from connecting rod

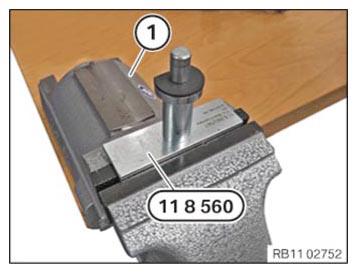

Clamp the special tool 0 495 743 (11 8 560) on the vice (1).
Position the piston on the piston pin circlip on the special tool 0 495 743 (11 8 560) .

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Spring preload.
Injury hazard!

The use of the specified special tool (tool) is mandatory.
The described operation must be carried out properly.

NOTE: TECHNICAL INFORMATION
Wear safety goggles.

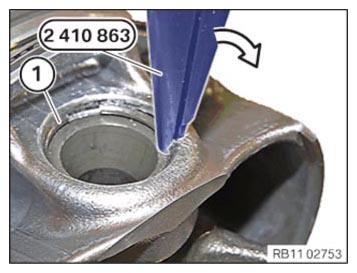

Use special tool 2 410 863 to engage the piston pin circlip (1) in the groove of the piston.
Remove piston pin retaining ring (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

NOTE: TECHNICAL INFORMATION
Piston and piston pin are matched to each other.
Always install piston and piston pin together and do not switch by mistake.

Check whether the piston pin (1) has a noticeable play in the piston.
Check whether the piston pin (1) can be removed without excessive force.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Piston pin (1) is very difficult to remove or the piston pin (1) has noticeable play.

Measure

Replace the piston (2) and the piston pin (1).

Remove piston pin (1) from piston (2) and connecting rod (3).
Mounting the piston on the connecting rod
Clean connecting rod bearing, piston pin, piston crown and piston pin boss.
Oil connecting rod bearing, piston pin, piston crown and piston pin boss.

NOTE: TECHNICAL INFORMATION
Piston and piston pin are matched to each other.
Always install piston and piston pin together and do not switch by mistake.

Install piston pin (1) in piston (2) and connecting rod (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the special tool 0 495 743 (11 8 560) on the vice.

Courtesy of BMW OF NORTH AMERICA, INC.

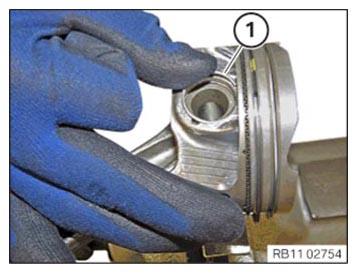

Position the piston pin circlip (1).

NOTE: The opening of the piston pin circlip (1) points in the direction of the piston crown.

Courtesy of BMW OF NORTH AMERICA, INC.

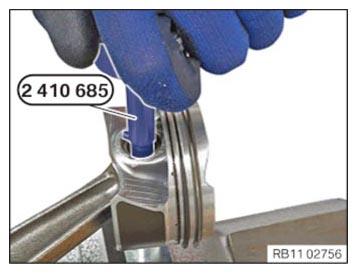

Preload the piston pin circlip with your thumb.
At the same time, press the piston pin circlip into the piston using the special tool 2 410 685 .

NOTE: Do not press and rotate the special tool 2 410 685 at the same time, as this will cause the piston pin circlip to twist out of the piston.

Courtesy of BMW OF NORTH AMERICA, INC.

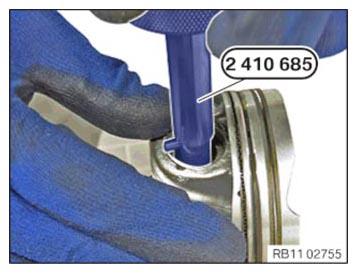

Secure the piston pin circlip with your thumb.
Reset the special tool 2 410 685 and continue to press the piston pin circlip into the piston.

Courtesy of BMW OF NORTH AMERICA, INC.

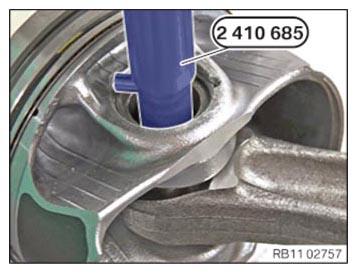

Secure the piston pin circlip with your thumb.
Reset the special tool 2 410 685 and press the piston pin circlip fully into the piston.

Courtesy of BMW OF NORTH AMERICA, INC.
