REP-TAT-P-1112-26 Installing the cylinder head on the special tool (turbocharger removed)

WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

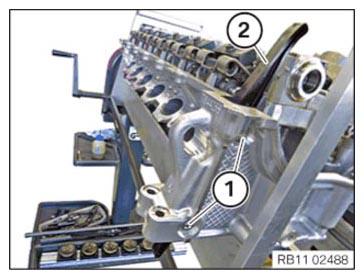

Loosen the bearing journals (1).
Remove the guide rail (2) towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.

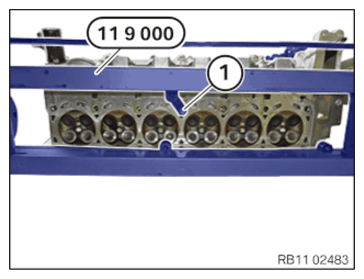

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: View from below.

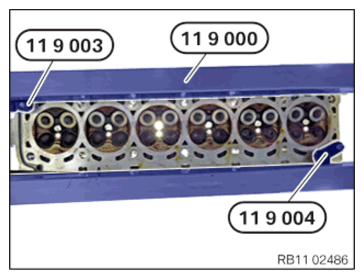

Completely position the cylinder head on the special tool 0 494 362 (11 9 000) .
Position special tool 0 494 368 (11 9 003) . Tighten the cylinder head on the special tool 0 494 368 (11 9 003) .
Position special tool 0 494 369 (11 9 004) . Tighten the cylinder head on the special tool 0 494 369 (11 9 004) .
Turn the clamping device by 180°.

Courtesy of BMW OF NORTH AMERICA, INC.
