REP-TAT-P-1165-02 Installing the trim strip for the exhaust turbocharger

WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

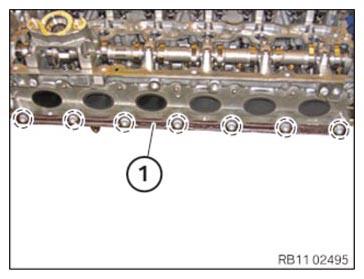

Replace the highlighted screws.
Parts : screw
Position the trim strip (1).
Tighten the highlighted screws from the inside towards the outside.

TIGHTENING TORQUES SPECIFICATION

Trim strip at the cylinder head
M7 x 27 Replace screws. Tighten from the inside to the outside.	1. Assembly torque	10 Nm
	2. Assembly torque	16 Nm
	3. Final torque	16 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
