REP-TAT-P-1165-02 Installing the exhaust turbocharger (cylinder head removed)
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.
- Replace gasket.
Parts : Gasket

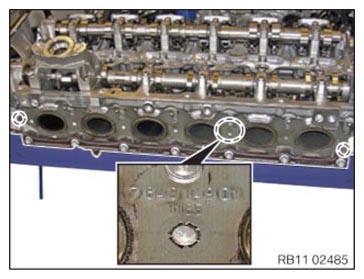

- Install gasket so that the part number is visible.
- During installation of the exhaust turbocharger/exhaust manifold, make sure that the gasket is correctly positioned in the guide pins in the highlighted areas.
NOTE:
TECHNICAL INFORMATION
Do not damage the thermal compensating elements. Disassembly and installation including intermediate storage of the exhaust turbocharger is only permitted with mounted special tool 2 466 919.
Do not damage the thermal compensating elements. Disassembly and installation including intermediate storage of the exhaust turbocharger is only permitted with mounted special tool 2 466 919.
- Thermal compensating element of the exhaust turbocharger/exhaust manifold should not be bent or deformed!
- Thread in exhaust turbocharger from top and position on the trim strip.

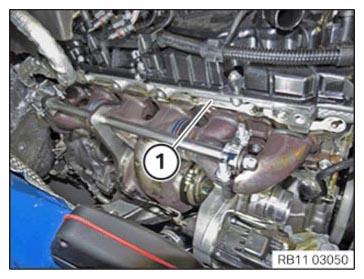

- Position the sliding rail (1).
- Install the shifting strip (1) so that the part number is visible.

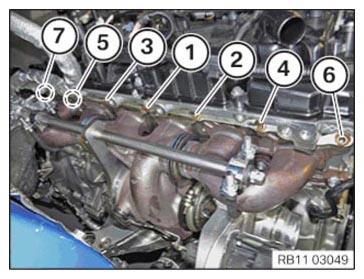

- Replace nuts (1) to (7).
Parts : Nuts
- Tighten nuts in the sequence (1) to (7) in semicircular pattern.
TIGHTENING TORQUES SPECIFICATION
| Exhaust manifold to cylinder head | ||
|---|---|---|
| Flange nutM7 | Replace flange nuts 1. Joining torque |
10 Nm |
| 2. Joining torque | 10 Nm | |
| 3. Joining torque | 16 Nm | |
| 4. Joining torque | 16 Nm | |
| 5. Joining torque | 16 Nm | |

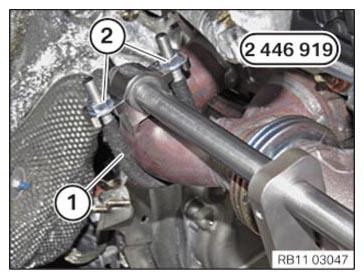

- Unscrew the nuts (2) and remove the retainer (1).

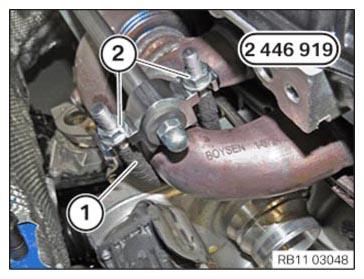

- Unscrew the nuts (2) and remove the retainer (1).

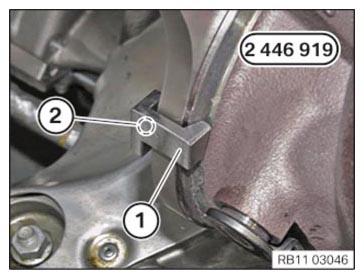

- Loosen screw (2) and remove holder (1).

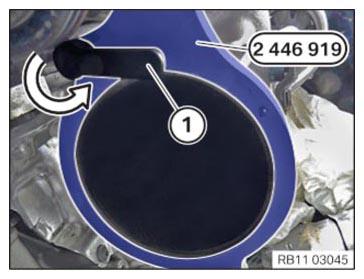

- Turn the clamping lever (1) against the direction of the arrow to release the special tool 2 446 919
.

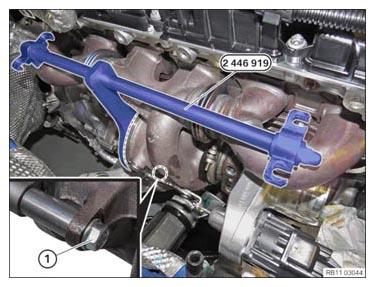

- Unscrew the bolt (1) and remove the special tool 2 446 919 from the exhaust turbocharger.
