23 01 010 Replacing sealing cap (GS6-17BG/DG)

WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

23 0 490
23 0 330

Necessary preliminary tasks:

Remove the TRANSMISSION .
Remove the CLUTCH OPERATOR .

Removal:

Use suitable tool to make a hole in the sealing cap (1).

IMPORTANT: Do not use a drill as swarf may result in transmission malfunction.

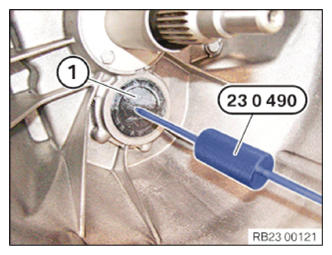

Screw special tool 23 0 490 into sealing cap.

Withdraw sealing cover from transmission housing with aid of impact weight.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

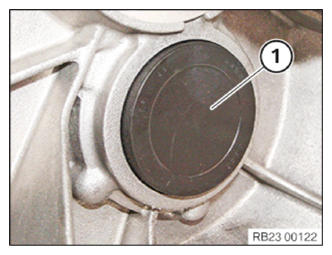

Apply transmission oil to the sealing lip of the sealing cap (1) and insert.

Courtesy of BMW OF NORTH AMERICA, INC.

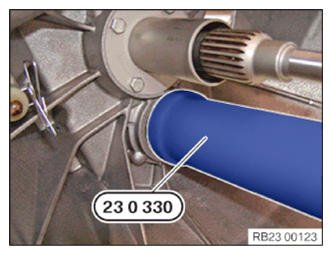

Drive sealing cap firmly home with special tool 23 0 330 .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install the CLUTCH OPERATOR .
Install the TRANSMISSION .
