22 11 110 Replacing left engine support arm

WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Clamp off BATTERY .
Secure the ENGINE IN INSTALLATION POSITION .
Remove the INTAKE PLENUM .

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

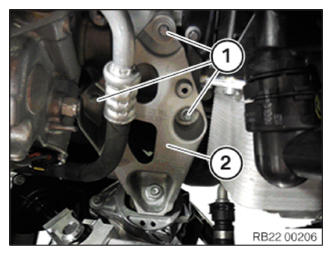

Release screws (1).

Remove engine support arm (2).

Installation:

Install engine support arm (2).

Tighten down screws (1).

Tightening torque, refer to: 22 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install the INTAKE PLENUM .
Connect the BATTERY .
