Transmission Case, Oil Sump: Notes
WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION CASE, OIL SUMP - TIGHTENING TORQUE SPECIFICATION
| Oil filler plug (GA6HP and GA8HP) | ||
|
|
||
| M18 | tightening torque | 35 Nm |

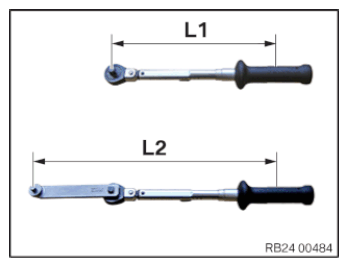

| The adjustable torque deviates from the specified tightening torque due to the special tool. The adjustable torque must be calculated depending on the used torque. | Adjustable torque | Adjustable torque=(35 Nm * L1): L2 |
