Automatic Transmission: Notes
WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.
AUTOMATIC TRANSMISSION - TIGHTENING TORQUE SPECIFICATION

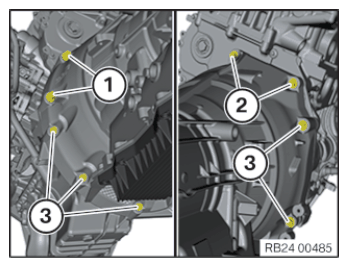

| Transmission to engine |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
| Screw (3) M12x100 |
66 Nm |
| Bolt (2) M12x75 |
66 Nm |
| Bolt (1) M8x50 |
19 Nm |
| Transmission to engine |
| M12 x 100 |
Tightening torque |
66 Nm |
