12 14 523 Replacing pulse sensor on intake camshaft (B48)

WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)!

Necessary preliminary tasks:

Remove the ACOUSTIC COVER

Removal:

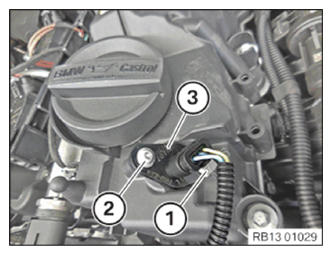

Unlock and disconnect plugs (1).

Release screw (2).

Remove pulse generator (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Check gaskets (1).

Replace damaged gasket (1).

Parts: Gaskets.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install pulse sensor (3).

Tighten screw (2).

Tightening torque, refer to: 13 62 1AZ .

Attach and lock connector (1).

Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install the ACOUSTIC COVER .
