0011 Release/add transmission oil in manual gearbox (GS6-17BG/DG)

WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Transmission must be at operating temperature.
Transmission oil:

Refer to BMW MANUAL TRANSMISSION - OPERATING FLUIDS

Filling capacities:

Refer to TECHNICAL DATA .

Draining transmission oil:

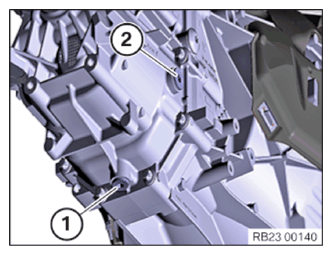

Release oil drain plug (1) and filler plug (2).
Clean oil drain plug (1) and screw in.
Tightening torque, refer to: 23 00 2AZ .

Fill transmission with transmission oil.

Undo oil filler plug (2).
Pour in gear oil until overflowing.
Screw in oil filler plug (2).
Tightening torque, refer to: 23 00 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.
