24 11 105 Removing and installing/sealing or replacing transmission oil sump (GA8HP50Z)
- Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
- Wear protective gloves.
- Ensure adequate ventilation.
After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the APPROVED TRANSMISSION OIL .
Failure to comply with this requirement will result in serious damage to the automatic transmission.
Installation note:
The transmission oil sump must be replaced every time it is removed.
Necessary preliminary tasks:
- Remove rear UNDERBODY PROTECTION .
Removal:

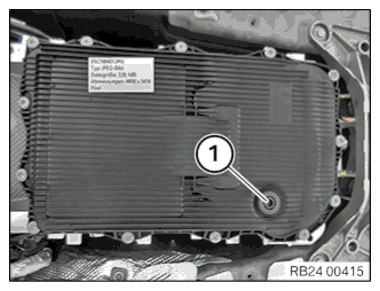

Remove oil drain plug (1).
Drain automatic transmission oil.
Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations.

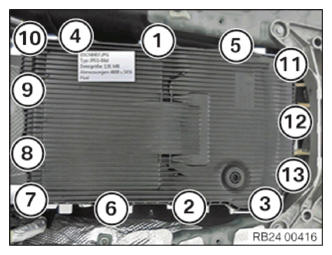

Unscrew all bolts.
Remove transmission oil sump.
Preparation for installation:
Replace transmission oil sump.
Clean the contact surface of the transmission oil sump on the transmission.
Installation:
Parts: Replace oil filler plug, transmission oil sump and screws.
Clean the contact surface of the transmission oil sump on the transmission.
Insert new screws until screw heads make contact.

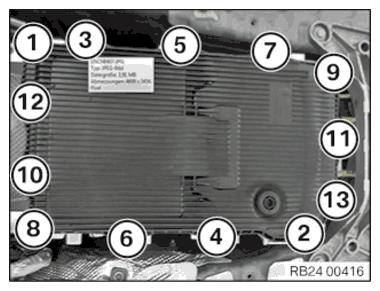

Tighten down screws in sequence 1...13 to specified torque and angle of rotation.
Tightening torque 24 11 4AZ .
Required follow-up work:
- Install the rear UNDERBODY PROTECTION .
- Adjust the TRANSMISSION OIL LEVEL .
