23..... Universal transmission retaining bridge
WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 1 450
- 24 0 200
NOTE:
- The transmission retaining bridge
24 0 200 is suitable for both manual and automatic transmissions
IMPORTANT:
Adapters and spindles must be adapted for positive locking to the transmission.
(Risk of injury)

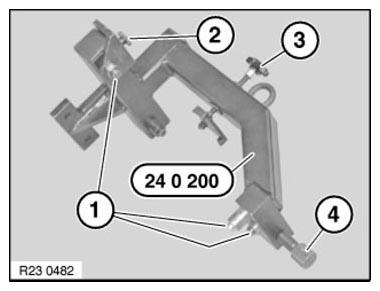

Adapt adapters (1) and spindle with thrust piece (3) to transmission.
Adapt length with slide (2).
Screw in spindle (4).
IMPORTANT:
Before mounting on assembly stand 00 1 450, check retaining bridge for secure seating.
