22 11 110 Replacing left engine support arm

WARNING: This page is about a different car, the 2018 BMW 340i and 2017 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove vehicle battery .
Secure ENGINE IN INSTALLATION POSITION .
Lower FRONT AXLE SUPPORT .
Remove INTAKE PLENUM .

Removal:

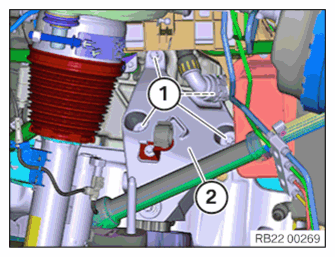

Release screws (1).

Remove engine support arm (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install engine support arm (2).

Tighten down screws (1).

Tightening torque 22 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install INTAKE PLENUM .
Raise FRONT AXLE SUPPORT .
Connect vehicle battery .
