REP-TAT-P-1362-02 Install the temperature sensor at the cylinder head
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.

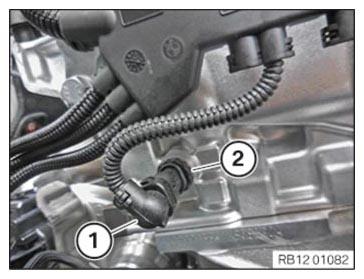

- Feed in and install the temperature sensor on the cylinder head (2).
- Tighten the temperature sensor on the cylinder head (2).
TIGHTENING TORQUES SPECIFICATION
| Temperature sensor to cylinder head | ||
|---|---|---|
| M12x1.5 | tightening torque | 2 Nm |
- Connect and lock the connector (1).
The connector (1) must engage audibly.
