REP-TAT-P-1362-02 Install the boost pressure sensor on the charge air line
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

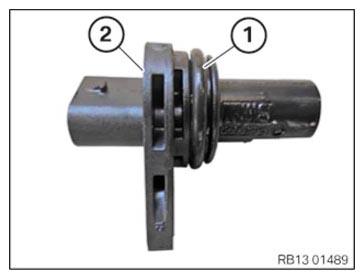

- Replace the sealing ring (1) on the boost pressure sensor (2).
Parts : Sealing ring

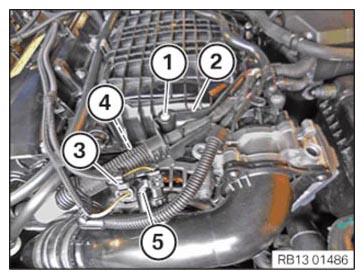

- Insert and install the boost pressure sensor (5).
- Tighten down screw (4).
TIGHTENING TORQUES SPECIFICATION
| Boost pressure sensor at the charge air line | ||
|---|---|---|
| TS5x20 | tightening torque | 4 Nm |
- Connect and lock the connector (3).
The connector (3) must engage audibly.
- Insert and install the wiring harness (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Wiring harness to intake plenum | |
|---|---|
| 4 Nm |
