Section 246 (Fuel System - Repair (F30, 6-CYL RWD))
>>
13 62 Sensor For Control Unit
>>
13 62 560 Remove and install/replace hot film air mass meter (after vehicle diagnosis)
>>
REP-TAT-P-1362-01-F30 Removing hot film air mass meter
REP-TAT-P-1362-01-F30 Removing hot film air mass meter
WARNING:
This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

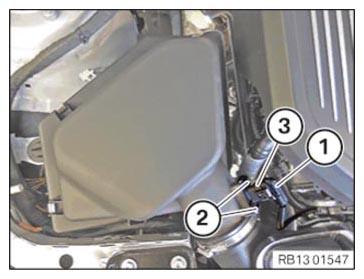

Unlock connector (1) and pull off.
Loosen screws (2).
Remove the hot film air mass meter (3).
Courtesy of BMW OF NORTH AMERICA, INC.
