REP-TAT-P-1362-02 Install charge air temperature sensor
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.

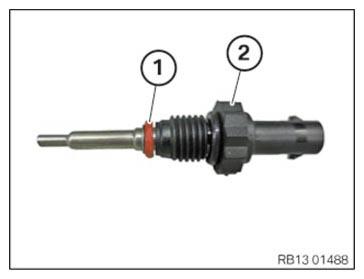

- Replace the sealing ring (1) on the charge-air temperature sensor (2).
Parts : Sealing ring
- Insert and install the charge air temperature sensor. (4).
- Tighten charge air temperature sensor (4).
TIGHTENING TORQUES SPECIFICATION
| Charge air temperature sensor on charge air line | ||
|---|---|---|
| Sensor | tightening torque | 1.8 Nm |
- Connect and lock the connector (3).
The connector (3) must engage audibly.
- Insert and install the wiring harness (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Wiring harness to intake plenum | |
|---|---|
| 4 Nm |
