REP-TAT-P-1362-02 Install the coolant temperature sensor on the connecting bracket of the crankcase
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

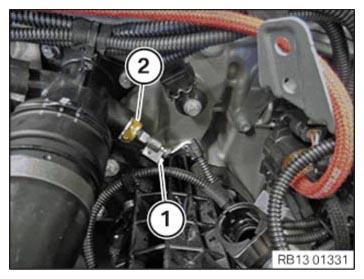

- Insert and install the coolant temperature sensor (2).
Parts : Gasket
- Tighten the coolant temperature sensor (2).
TIGHTENING TORQUES SPECIFICATION
| Coolant temperature sensor to crankcase connecting bracket | ||
|---|---|---|
| M12X1, 5 | tightening torque | 13.5 Nm |
- Connect and lock the connector (1).
The connector (1) must engage audibly.
