REP-TAT-P-1353-02 Install the rail pressure sensor
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

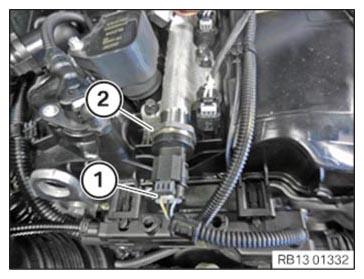

- Insert and install the rail pressure sensor (2).
- Tighten the rail pressure sensor (2).
TIGHTENING TORQUES SPECIFICATION
| Rail pressure sensor | ||
|---|---|---|
| M14x1, 5 Grease thread lightly. |
Tightening sequence | 30 Nm |
- Connect and lock the connector (1).
The connector (1) must engage audibly.
- Check fuel system for leak tightness.
