21 51 500 Removing and installing or replacing clutch release bearing/lever

WARNING: This page is about a different car, the 2018 BMW 340i and 2017 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (gearbox removed)

Do not disassemble clutch operator! Otherwise there is a risk of the clutch operator being incorrectly reassembled.

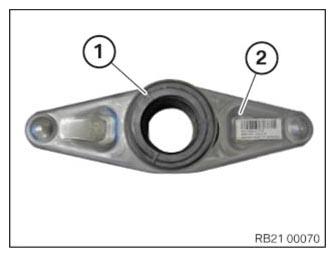

NOTE: Release bearing (1) and release lever (2) have been combined to form a clutch operator.
Do not grease sliding surfaces.

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Remove clutch operator (1) from wire spring clip (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Check wire spring clip (2) and ball pin (1) for damage and replace if necessary.

Apply a thin coating of grease to ball pin (1).

Specified grease: refer to CLUTCH - OPERATING FLUIDS .

Courtesy of BMW OF NORTH AMERICA, INC.

Clean guide sleeve (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Slide release module (1) onto output shaft and clamp behind wire spring clip (2).

Installation note:

Do not grease guide sleeve.

IMPORTANT: If guide sleeve is greased, the release lever can stick on the guide sleeve.

Courtesy of BMW OF NORTH AMERICA, INC.
