REP-TAT-P-1810-25 Replacing exhaust cover
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Exhaust covers must be replaced after removal.
The correct stop on the exhaust system can not be guaranteed after removal.
Exhaust covers must be replaced after removal.
The correct stop on the exhaust system can not be guaranteed after removal.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

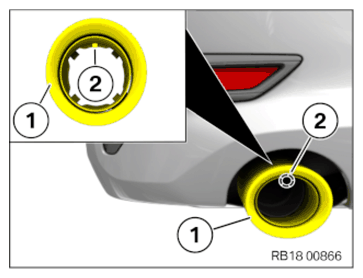

- Option A:
Replace the exhaust cover (1).
Parts : Exhaust cover
Correctly position and align the exhaust cover (1) on the exhaust system.
Slide the exhaust cover (1) with increased effort onto the exhaust system up to the stop (2).

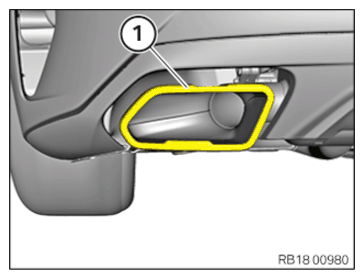

- Variant B:
Replace exhaust covers (1).
Parts : Exhaust cover
Position and align exhaust covers (1) correctly on the exhaust system.
Slide the exhaust cover (1) with increased effort onto the exhaust system up to the stop.
- Variant C:
Replace the exhaust cover (1).
Parts : Exhaust covers
Position and align exhaust covers (1) correctly on the exhaust system.
Slide the exhaust cover (1) with increased effort onto the exhaust system up to the stop.
