REP-TAT-P-1251-02 Install the wiring harness section for the transmission

WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

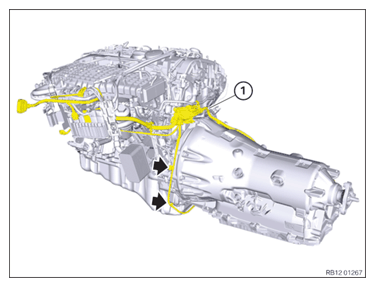

Route the wiring harness section for the transmission (1) and secure it with the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

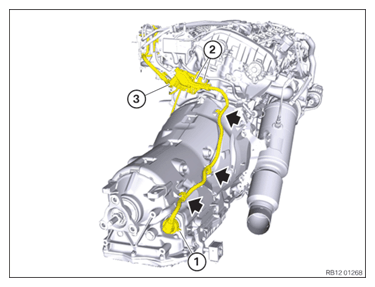

Route the wiring harness section for the transmission (3) and secure it with the clamps (arrows).

Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Wiring harness section for transmission to cylinder head
M6x16	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and audibly lock the connector (1) to the transmission.
For all-wheel drive vehicles, connect the connector to the transfer box (VTG) and lock it audibly.
Route the cable (2) and secure it with the clamps (arrows).

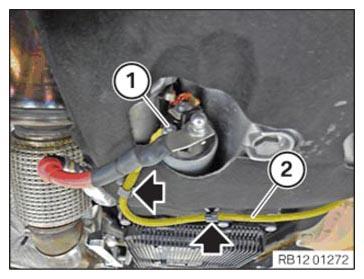

Tighten the nut (1) (terminal 50).

TIGHTENING TORQUES SPECIFICATION

Terminal 50 to starter motor
M6 hexagon nut	Tightening torque	7 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

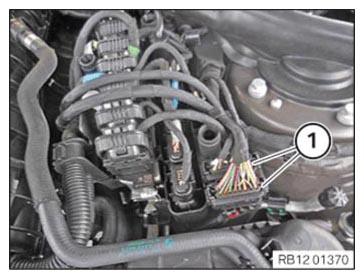

Connect the connector (1), it should lock audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
