REP-TAT-P-1251-01 Install the wiring harness section for sensor system 1

WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

Overview: Wiring harness section for sensor system 1

Courtesy of BMW OF NORTH AMERICA, INC.

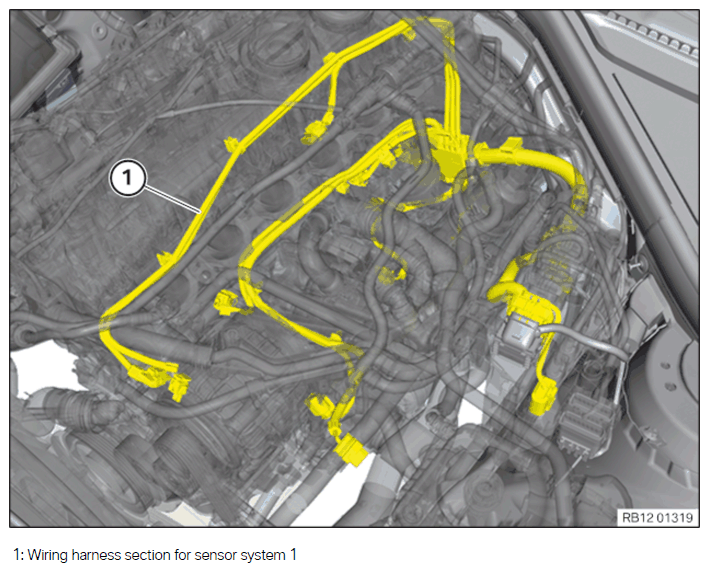

Wiring harness section for sensor system 1

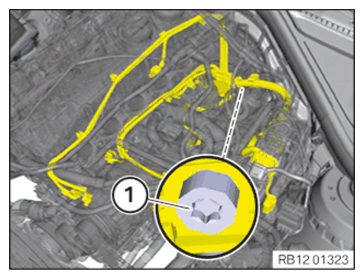

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and pull off the connector of the DME control unit.
Unlock and remove the connector of the integrated supply module (PDM).
Unlock the connector of the pressure sensor on the intake plenum and pull off.
Unlock the connector of the knock sensors and pull off.

Unlock and pull off the connector of the crankshaft sensor.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and pull off the connector of the oil-level sensor.
Unlock and pull off the connector of the solenoid valve.
Unlock and pull off the connector of the oil pressure sensor.
Unlock and pull off the connector from the electrical auxiliary pump.
Unlock and pull off the connector of the heat management.
Unlock and pull off the connector of the coolant temperature sensor.
Unlock and pull off the connector of the alternator.
Unlock and pull off the connector of the charging pressure sensor.
Unlock and pull off the connector of the charge-air temperature sensor.
Unlock and pull off the connector from the throttle valve.
Detach the wiring harness section (1) from the clamps.
Remove the wiring harness section (1).
