REP-TAT-P-1251-02-B58 Install the wiring harness for the Valvetronic servomotor
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

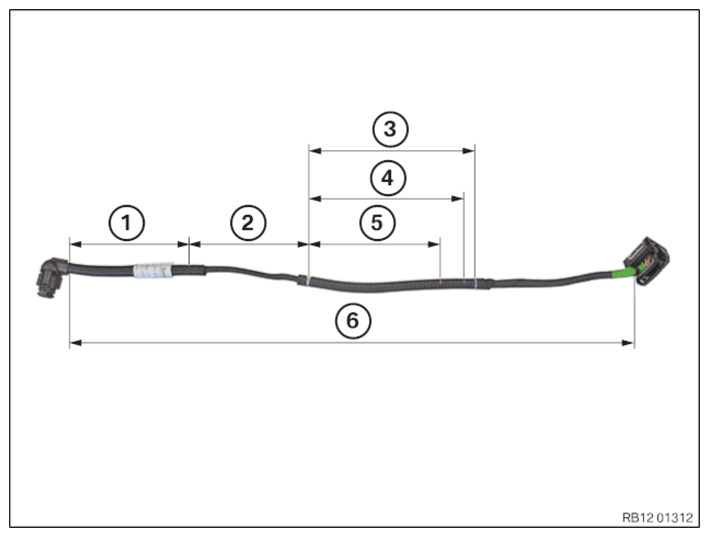

Overview of wiring harness for the Valvetronic servomotor
- Dimension between the Valvetronic servomotor and the cable routing = 150 +10-5 mm
- Dimension in the cable routing = 150 ±5 mm
- Dimension from the cable routing to the tension relief G01 = 205 mm
- Dimension from cable routing to tension relief G11, G12, G30, G31, G32, G38 = 190 mm
- Dimension from the cable routing to the tension relief F30, F31, F32, F33, F34. F36 = 160 mm
- Overall length from the servomotor to the DME control unit = 705±5 mm
- Position the wiring harness for the Valvetronic servomotor as shown in the overview and install.
- Connect and lock the connectors (2) to the DME control unit.
- Connect and lock all connectors (1) to the DME control unit from back to front.
- Fasten the wiring harness for the Valvetronic servomotor on the cable duct (2) with the cable ties (1).
- Mount the cable duct on the intake plenum.
- Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Cable duct to intake plenum 4 Nm - Mount the tank vent line (2) on the intake plenum.
- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Tank vent line to intake plenum Oval-head screw Tightening torque 3 Nm - Unlock the connector (1) and detach it off the Valvetronic servomotor.
