REP-TAT-P-1251-01-B58 Remove the wiring harness for the Valvetronic servomotor

WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

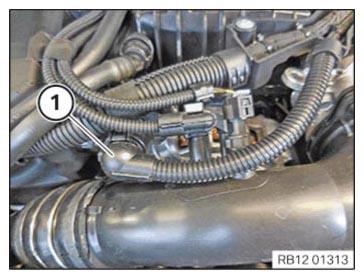

Unlock the connector (1) and detach it off the Valvetronic servomotor.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Disconnect the tank vent line (2) from the intake plenum.
Loosen screws (3).

Courtesy of BMW OF NORTH AMERICA, INC.

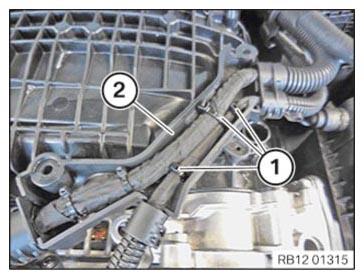

Detach the cable tie (1) from the cable duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.

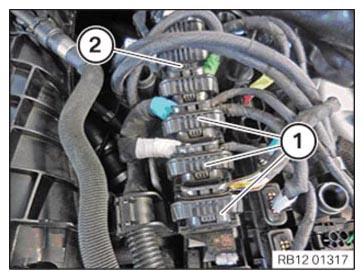

Unlock all connectors (1) from front to back and unplug them from the DME control unit.
Unlock connector (2) and unplug it from the DME control unit.
Guide the wiring harness for the Valvetronic servomotor out and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
