REP-TAT-P-1251-01 Remove the wiring harness section for the injectors
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

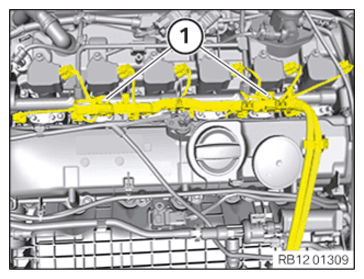

- Unscrew the nuts (1) and remove the ground cable.

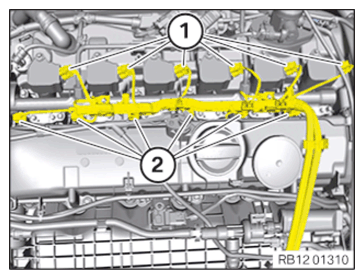

- Unlock all connectors (1) and disconnect them from the ignition coils.
- Unlock all connectors (2) and disconnect them from the injectors.

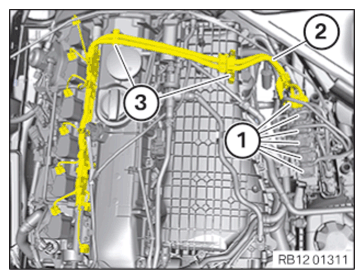

- Unlock all connectors (1) from front to back and unplug them from the DME control unit.
- Unlock the clamps (3) and guide the wiring harness (2) out and remove it.
