REP-TAT-P-1214-02 Installing the knock sensor of cylinders 4 to 6

WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

Clean the contact surface of the knock sensor at the crankcase.

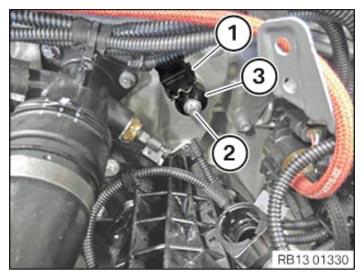

Insert and install the knock sensor (3).

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

Knock sensor to crankcase
M8x30	Tightening torque	21.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1).
The connector (1) must engage audibly.
