00 00... Steering components: Checking for play, damage, and tightness
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.
Checking play:
NOTE:
Observe notes on CHECKING THE STEERING BACKLASH
- Check the tie rod backlash only in loaded condition or in the design position.
- Checking with front axle raised:
- To evaluate the play of the steering gear, it is necessary to pressurize the steering gear via its servo system!
- The combustion engine must be running during hydraulically or electrically assisted steering for this purpose
Steering wheel:
Move steering wheel back and forth and check for play.
Track rod joint:
There must be no play between the track rod joint (1) and track-rod arm (2).
Check for damage:
Check gaiter, axle and gaiter for damage (e.g. cracks, holes) and leaks.
Check gaiter for missing tensioning straps.
Check for tightness (only for hydraulically supported steering):
Check all visible connections, hoses, lines and steering box for traces of fluid.

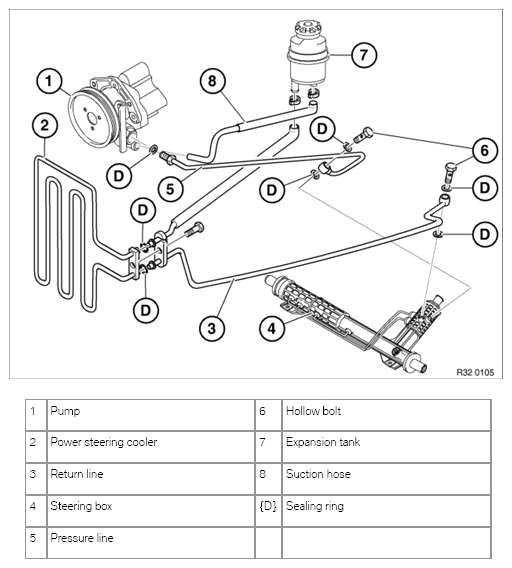

The following image shows the principal arrangement of the hydraulic steering components and lines.
