24 31 016 Replace radial shaft seal for torque converter (GA8HP50Z)

Special tools required:

• 00 2 300
• 13 5 250
• 24 0 200
• 24 1 420
• 24 1 410

Attention!

• Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
• Wear protective gloves.
• Ensure adequate ventilation.

Attention!

After completion of repair work, check TRANSMISSION OIL LEVEL .

Use only the APPROVED TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

• Remove TORQUE CONVERTER .

Removal:

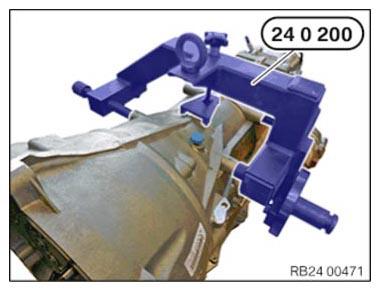

Secure transmission with special tool 24 0 200 on assembly stand 00 2 300.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

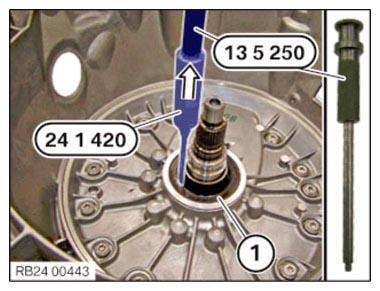

Pull out radial shaft seal (1) with special tools 24 1 420 and 13 5 250.

Courtesy of BMW OF NORTH AMERICA, INC.

The 13 aluminium Torx screws contained in the drive repair kit are furnished with a sealing ring and must be mandatory  replaced as well.

When replacing screws (1) along the dashed line, always change one screw after the other.

Installation:

Fig 1: Torque Converter Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws in order 1...13.

Parts:  Replace screws 1...13 and sealing ring.

Tightening torque 24 30 6AZ .

Installation note:

1. Install the O-ring on the drive shaft.
2. Oil sealing lip on radial shaft seal (1).

   Courtesy of BMW OF NORTH AMERICA, INC.

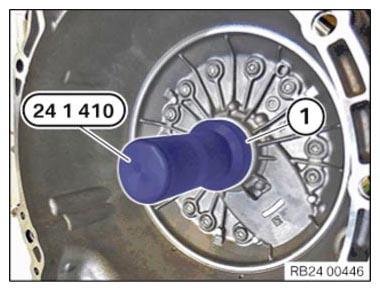

3. Drive in radial shaft seal (1) with special tool 24 1 410 as far as it will go.

Required follow-up work:

• Install TORQUE CONVERTER .
