REP-TAT-P-1712-01 Removing coolant hose from cylinder head to coolant expansion tank
WARNING: This page is about a different car, the 2018 BMW 330i xDrive and 2017 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

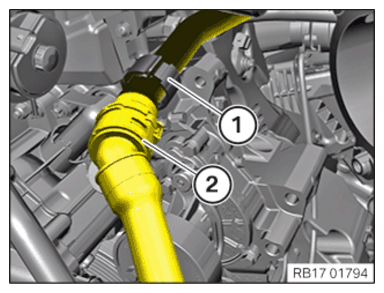

- Loosen clamp 1.
- Detach coolant hose 2 and lay to one side.

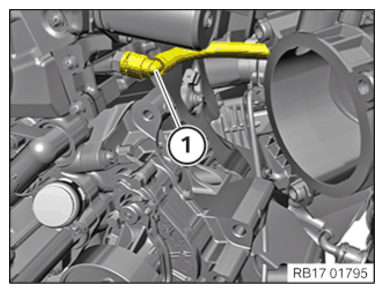

- Unlock coolant hose 1 and pull off from cylinder head.
- Catch and dispose of escaping coolant.

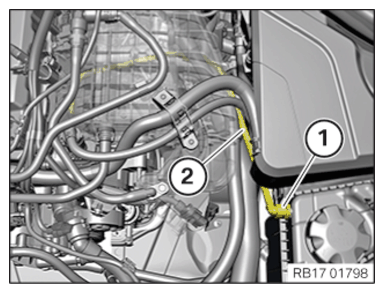

- Unlock coolant hose 2 and detach from coolant expansion tank 1.
- Feed out coolant hose 2 underneath the intake plenum and remove.
BMW Group - AIR: 2019-09-13/13:50
Dealer: 32711/06
Model: 330I XDR A
Vehicle identification number: WBA8D9G5XJNU73063
Development code: F30
Model code: 8D07
Lead type: 8D03
