REP-TAT-P-3151-02 Press both dust plates on
WARNING: This page is about a different car, the 2018 BMW 330i xDrive and 2017 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

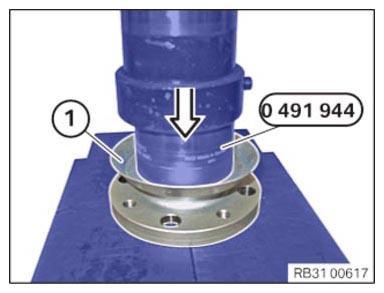

- Press the large dust plate 1
onto the input flange with a hydraulic press and the special tool 0 491 944 (31 2 272)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Press the small dust plate 1
onto the input flange with a hydraulic press and the special tool 0 491 913 (31 2 130)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
