31 12 134 Replacing rubber mount in left or right tension strut

WARNING: This page is about a different car, the 2018 BMW 330i xDrive and 2017 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 3 031
31 3 032

Attention!

Necessary preliminary work:

Check ball joint of the trailing link in the installed state.
- If necessary replace TRAILING LINK .
Remove the TENSION STRUT .

Attention!

Mark trailing link with a punch mark in area (A).

If the tension strut already features an identification mark with a center punch, it is necessary to replace the tension strut.

Courtesy of BMW OF NORTH AMERICA, INC.

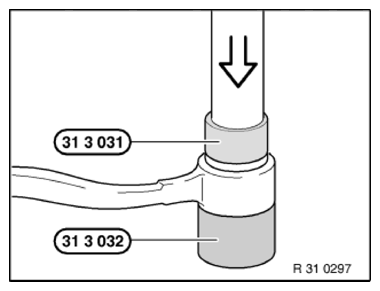

Using a press and special tools 31 3 031 and 31 3 032, press rubber mount out of tension strut.

NOTE: special tool 31 3 031 must be exactly flush with rubber mount bush.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep rubber mount and bushing in tension strut clean and free from grease.

NOTE: The eye of the tension strut features a chamfer on one side.
Press the rubber mount in from this side.

Align the rubber mount with the notch on the punch mark (arrow) at the tension strut and press it in. The deviation (A) must not exceed ±5°.

Courtesy of BMW OF NORTH AMERICA, INC.

Protrusion (A) must be equal.

NOTE: The graphic shows the right trailing link. The installation position is reversed on the left side.

Courtesy of BMW OF NORTH AMERICA, INC.
