Section 211 (Front Axle - Repair (F30, 4-CYL AWD))
>>
31 10 Front Axle Suspension
>>
31 10 010 Removing and installing/replacing reinforcement plate
>>
REP-TAT-P-3110-01-F30 Remove reinforcement plate
REP-TAT-P-3110-01-F30 Remove reinforcement plate
WARNING:
This page is about a different car, the 2018 BMW 330i xDrive and 2017 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Driving without a bracing plate is not permitted.

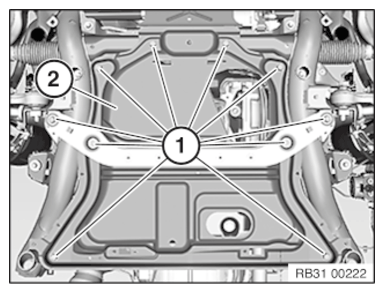

Version 1:
Loosen screws
1
.
Remove the bracing plate
2
.
Courtesy of BMW OF NORTH AMERICA, INC.
Version 2:
Loosen screws
1
.
Remove the bracing plate
2
.
Courtesy of BMW OF NORTH AMERICA, INC.
