31 00... Front axle + steering: wheel/chassis alignment check must be carried out after the following work
WARNING: This page is about a different car, the 2018 BMW 330i xDrive and 2017 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
A WHEEL ALIGNMENT CHECK must be carried out after the following work:
Release the following screw connections:
- Steering box to front axle support
- Lower wishbone to front axle support
- Track rod end to track rod

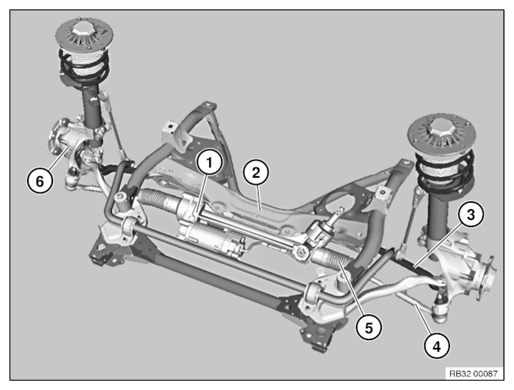

Replace the following components:
- Steering box (1)
- Front axle support (2)
- Wishbone, bottom (3)
- Track rod end (4)
- Track rod (5)
- Swivel bearing (6)
