33 32 Overview of wishbone, camber arm, trailing arm, toe arm and control arm

WARNING: This page is about a different car, the 2018 BMW 330i xDrive and 2017 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

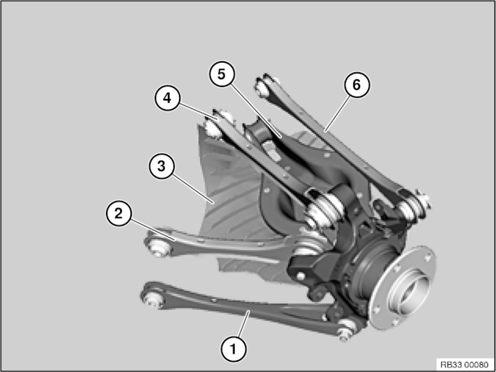

G12702974Courtesy of BMW OF NORTH AMERICA, INC.

Refer to: NORMAL POSITION , and WHEEL ALIGNMENT PROCEDURE for adjustment specifications.

  1. Refer to: TRAILING ARM
  2. Refer to: TRACTION STRUT
  3. Refer to: CAMBER ARM COVER
  4. Refer to: WISHBONE
  5. Refer to: CAMBER ARM
  6. Refer to: TOE ARM
