REP-TAT-P-3311-02-BMW Installing the dust plate
WARNING: This page is about a different car, the 2018 BMW 330i xDrive and 2017 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Different variants may be installed depending on the vehicle equipment.
Version A: Installing the dust plate
- Replace the dust plate 1
.
Parts: dust plate

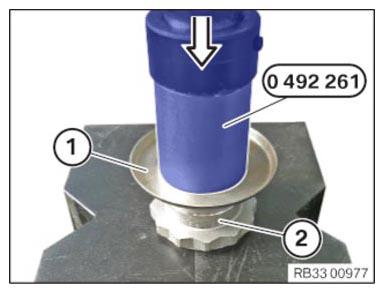

- Press the dust plate 1 onto the drive flange 2 in arrow direction with a hydraulic press and the special tool 0 492 261 (33 3 201) .
Version B: Installing the dust plate
- Replace the large dust plate 1
.
Parts: Large dust plate

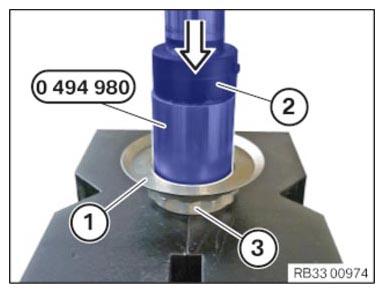

- Press the large dust plate 1
onto the drive flange 3
in arrow direction with a hydraulic press 2
and the special tool 0 494 980 (33 4 464)
.

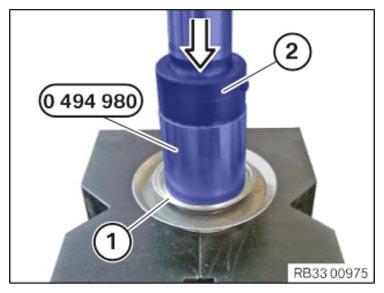

- Replace the small dust plate 1
.
Parts: Small dust plate
- Press the small dust plate 1 onto the drive flange in arrow direction with a hydraulic press 2 and he special tool 0 494 980 (33 4 464) .
