REP-TAT-P-3311-01-BMW Removing the dust plate
WARNING: This page is about a different car, the 2018 BMW 330i xDrive and 2017 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Different variants may be installed depending on the vehicle equipment.
Version A: Removing the dust plate

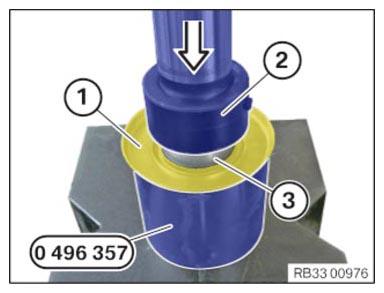

- Release the dust plate 1 from the drive flange 3 in arrow direction with a hydraulic press 2 and the special tool 0 496 357 (31 5 272) and remove.
Version B: Removing the dust plate

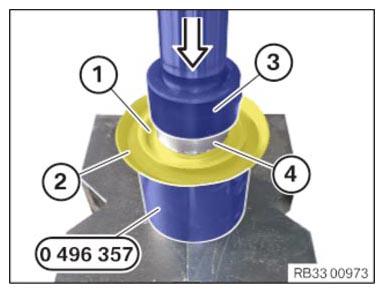

- Release and remove the small dust plate 1 and the large dust plate 2 from the drive flange 4 in arrow direction with a hydraulic press 3 and the special tool 0 496 357 (31 5 272) .
