Engine - Repair (F30, 6-CYL AWD)
>>
11 51 Coolant Pump With Drive
>>
11 51 028 Removing and installing/replacing auxiliary water pump for exhaust turbocharger
>>
REP-TAT-P-1151-02 Installing the auxiliary coolant pump
REP-TAT-P-1151-02 Installing the auxiliary coolant pump

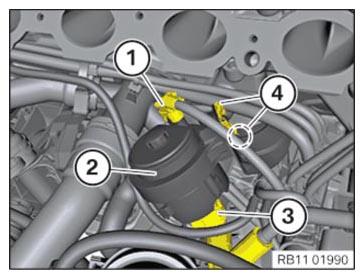

Position auxiliary coolant pump (2) on holder.
Lock coolant hose (1) and connect to the auxiliary coolant pump (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Lock coolant hose (3) and connect to the auxiliary coolant pump (2).
Secure auxiliary coolant pump (2) with the clamps (4).

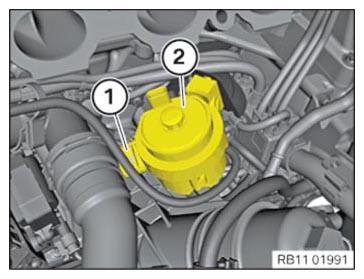

Connect connector (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
