Topping up the motor oil
NOTE:
RISK OF DAMAGE
Engine damage caused by excessively filling the engine with motor oil.
Filling an excessive quantity of motor oil may cause engine damage.
Engine damage caused by excessively filling the engine with motor oil.
Filling an excessive quantity of motor oil may cause engine damage.
- Observe the exact motor oil filling capacity.
- Allow engine oil to drip off when draining.

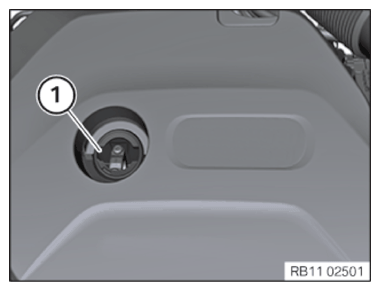

- Fill in motor oil via the oil filler neck (1).
Technical data
| Engine oil | |
|---|---|
| Filling capacity, motor oil change with oil filter element | 5.25 l |
Closing the oil filler cap

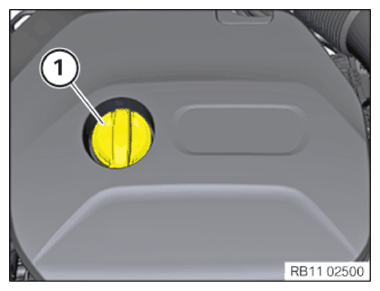

- Close oil filler cap (1).
Follow-up work
- Refer to CHECKING ENGINE OIL LEVEL .
