Blocking The Crankshaft In The TDC Firing Position Of The First Cylinder (Automatic Transmission)
- Version with automatic transmission:

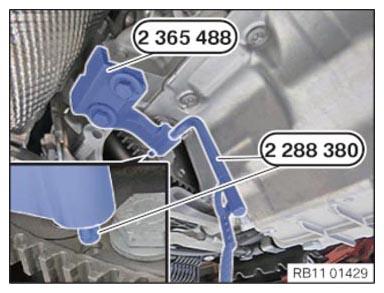

Position the special tool 2 365 488
and secure with the corresponding screws.
Block the crankshaft with the special tool 2 288 380
in the TDC firing position of the first cylinder.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
