65 12 210 Removing and installing/replacing CHAMP radio receiver (BMW Professional radio)
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.
Necessary preliminary tasks:
- Disconnect battery negative cable . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY EARTH LEAD or 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD
- Remove RADIO AND IHKA CONTROLS
Release screws (1).
Pull out the CHAMP (2) to the front.
Installation note:
Make sure CHAMP (2) is correctly seated on retaining lugs at the marked points.

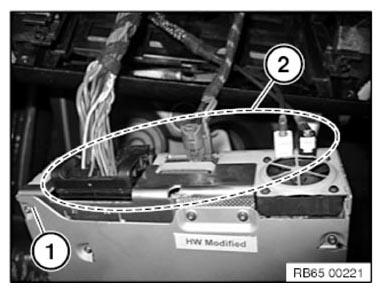

Unlock plug connections (2) and disconnect.
Remove CHAMP (1).
Replacement:
Carry out VEHICLE PROGRAMMING/ENCODING .
For vehicles with Teleservices optional equipment:
- Update services via menu in the central information display.
Load service history:
- 05 Maintenance and Pre-Delivery Check
- Service history
