32 31 003 Removing and installing/replacing upper section of steering column shroud (2' Series coupe and convertible, 2017-2021)

Move steering column in "bottom" and "extended" position.

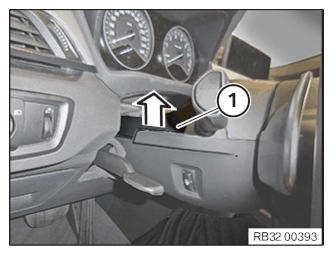

Push steering column shroud (1) upwards at rear and unclip.

Repeat process on right side.

G15356052Courtesy of BMW OF NORTH AMERICA, INC.

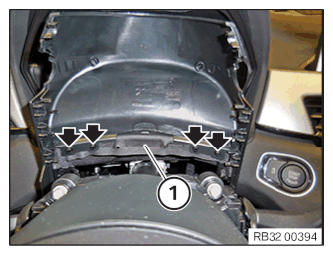

Unclip steering column gap cover (1) out of steering column shroud upper section.

G15356053Courtesy of BMW OF NORTH AMERICA, INC.
