61 67 100 Removing and installing/replacing high-pressure nozzle of headlight cleaning system on left (or right) (2' Series coupe and convertible, 2017-2021)

Special tools required:

Necessary preliminary tasks:

NOTE: Work shown on the F30 by way of example, deviations in detail are possible in other models.

Use special tool 00 9 340 to lift the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly pull out high-pressure nozzle of headlight washer system (1) at cover (2).

Unclip cover (2) in direction of arrow and remove.

Allow high-pressure nozzle of headlight washer system (1) to slide back slowly.

Courtesy of BMW OF NORTH AMERICA, INC.

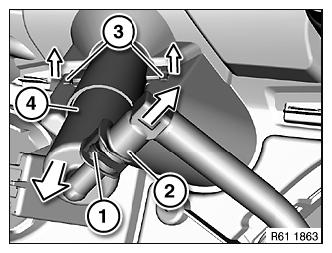

Unlock safety coupling (1) of high-pressure line (2) and detach high-pressure line (2) in direction of arrow.

Lift retaining lugs (3) in direction of arrow and feed high-pressure nozzle (4) towards rear out of bumper panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep hose connection for high-pressure nozzle (4) and high-pressure line (2) clean and free from grease.

Make sure high-pressure line (2) is correctly engaged on high-pressure nozzle (4).

Make sure high-pressure nozzle (4) is correctly engaged on front bumper panel.

Carry out a function check before fitting bumper panel.

If necessary, top up washer fluid.
