61 31 079 Removing and installing/replacing switch for hazard warning flashers/central locking

Special tools required:

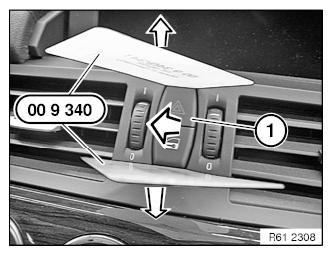

Carefully lever out switch for hazard warning system/central locking (1) with special tool 00 9 340  in direction of arrow.

Remove switch for hazard warning system/central locking (1) in direction of arrow and disconnect plug connection behind.

G15358865Courtesy of BMW OF NORTH AMERICA, INC.
