51 36 047 Replacing cover at rear left or right side window (2' Series coupe models)

Special tools required:

00 9 325

IMPORTANT: The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

NOTE: Correctly adjusted front door window glass is essential to ensuring correct installation. Refer to ADJUSTING LEFT OR RIGHT FRONT SIDE WINDOW .

Remove trim:

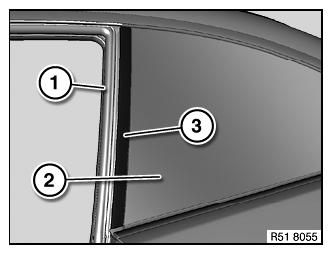

Undo door seal (1) in the area of the side window (2).

Heat cover (3) using a hot air blower and remove from side window (2) using special tool 00 9 325 .

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover:

Clean adhesive area on side window.

Fit door seal.

Pull liner* off cover (1).

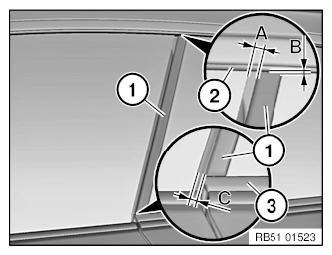

Attach cover (1) above at PVC coating (2) in accordance with dimensions (A) and (B).

A = 7 ±1 mm

B = 0.5 ±0.5 mm

Attach cover (1) below at PVC coating (3) in accordance with dimension (C).

C = 7 ±1 mm

Apply thumb pressure force over entire bonding surface of cover (1).

*Liner is the protective film on adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.
