41 33 050 Replacing Center Front Panel

Necessary preliminary tasks:

Most of operation is described on the left side.

Right side identical.

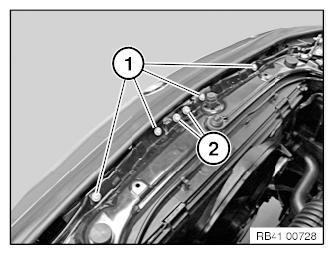

Release screws (1).

Tightening torque 51 11 13AZ .

Unfasten screws (2).

Tightening torque 51 11 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

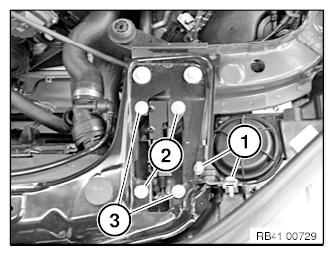

Release screws (1) and remove headlight holder.

Tightening torque 63 12 1AZ .

Release screws (2) and place the hood lock directly under the front panel.

Tightening torque 51 23 1AZ .

Loosen screws (3).

Tightening torque 51 11 14AZ .

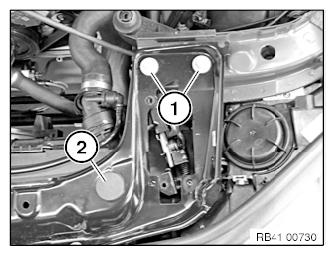

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 41 33 1AZ .

Remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

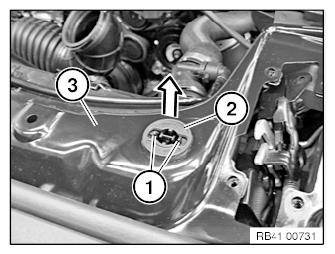

Press locks (1) together and pull the supporting bushing (2) out toward the top.

Remove center front panel (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Remount holder (1) for radiator.

Courtesy of BMW OF NORTH AMERICA, INC.

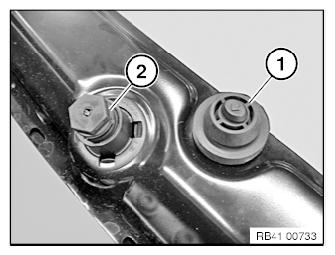

Remove rubber mount (1).

Installation note:

The fixing possibility for the stop pad (2) is omitted on the replacement part.

The stop pad (2) is omitted.

Courtesy of BMW OF NORTH AMERICA, INC.

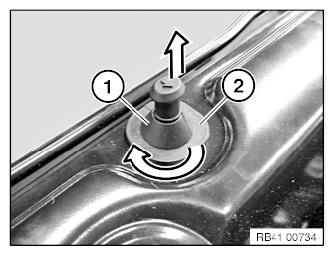

Slide lock (1) upwards in direction of arrow.

Turn the holder (2) for the rubber mount clockwise and take off.

Remount holder and rubber mount.

Courtesy of BMW OF NORTH AMERICA, INC.
